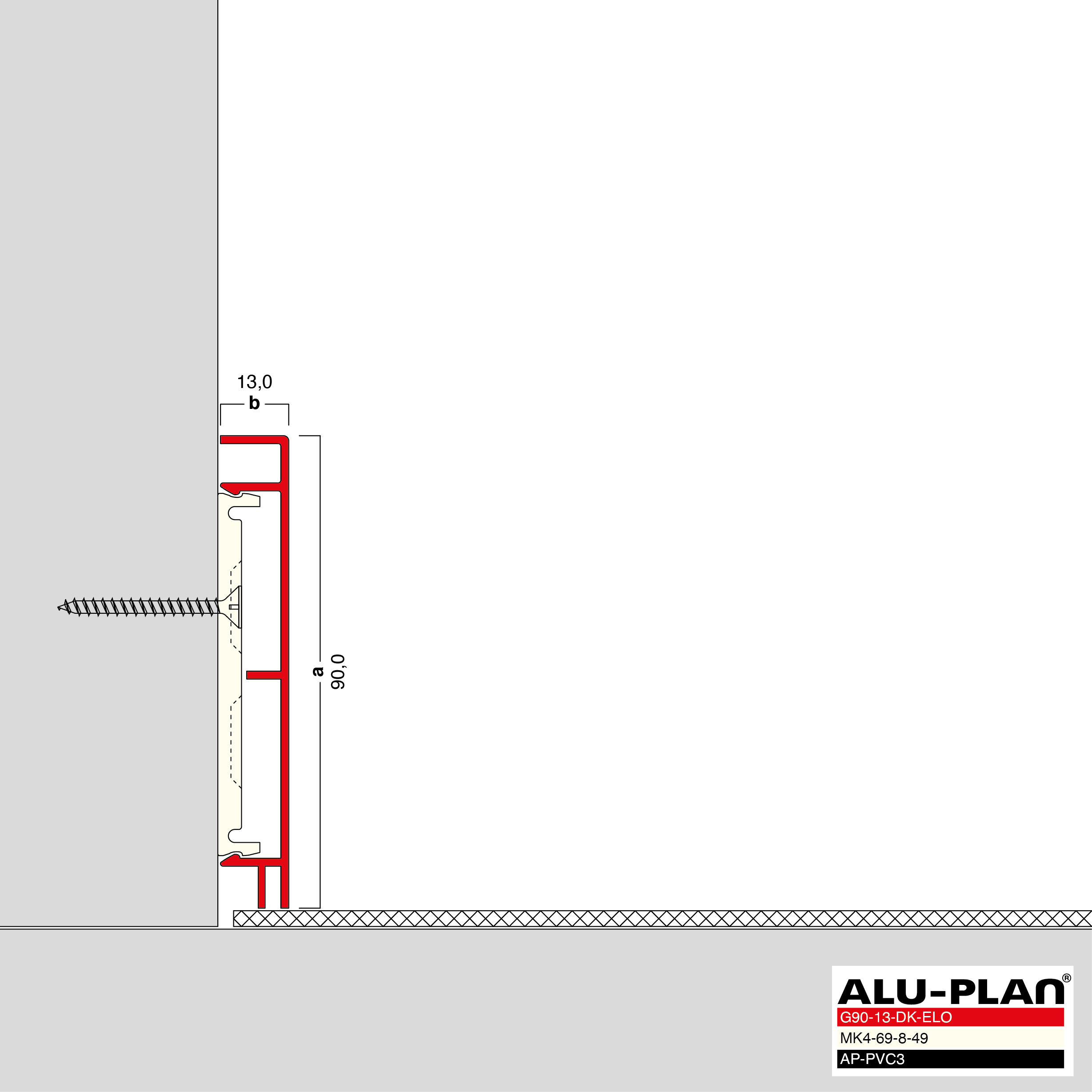

mounting clips MK4 for mounting the profiles on the wall. the clips, made of break-resistant polycarbonate, are mounted by simply screwing. if necessary, drilling and a dowel must be inserted. for a sufficiently stable installation, the clips should be attached at a distance of 40 to 50 cm.
Product:
SKU:
G90-13-DK-ELO
SKU: G90-13-DK-ELO
ID 2018: G4-A
height (a)
90,0 mm
width (b)
13,0 mm
length (l)
4,0 m
Mounting Clip MK4
SKU:
MK4-69-8-49

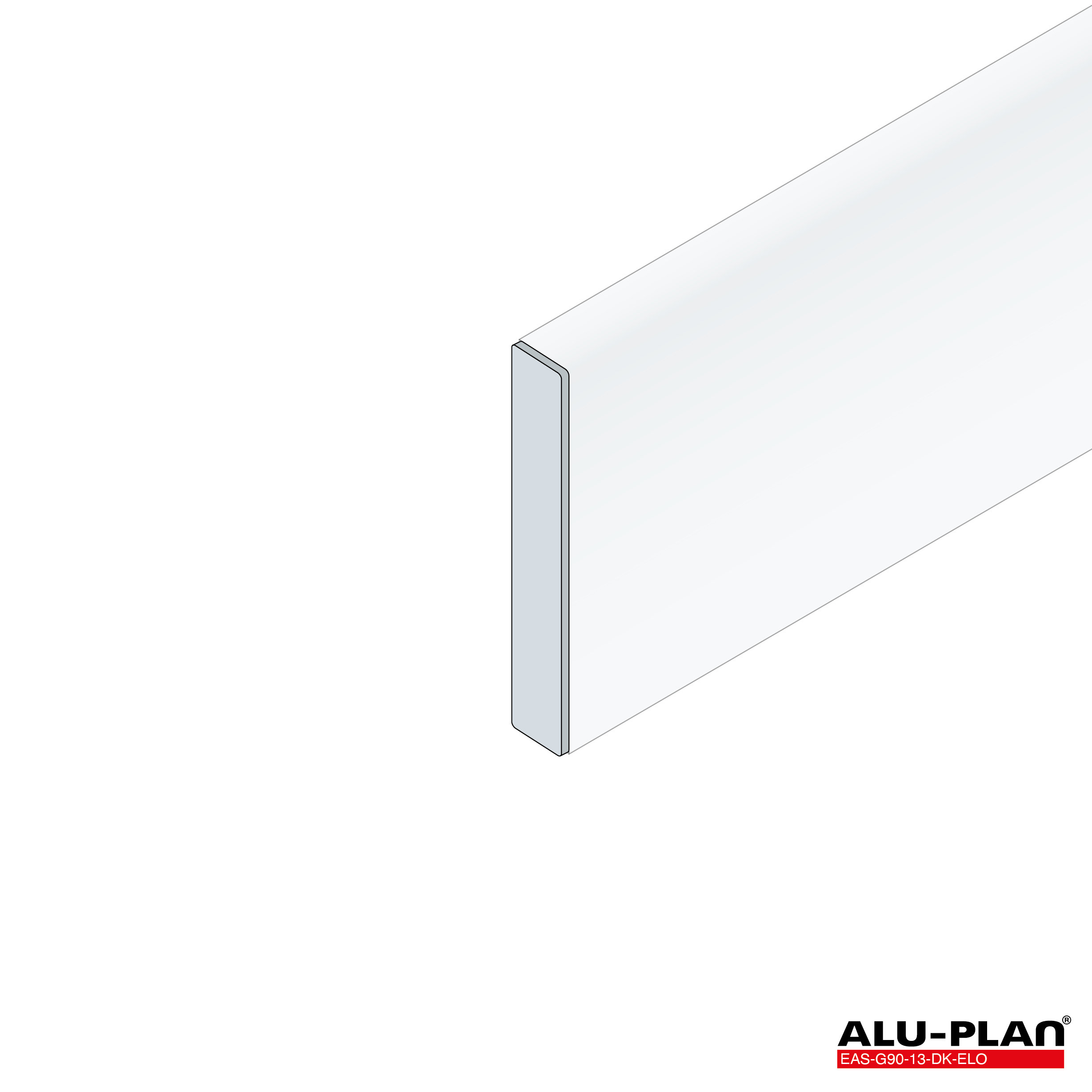

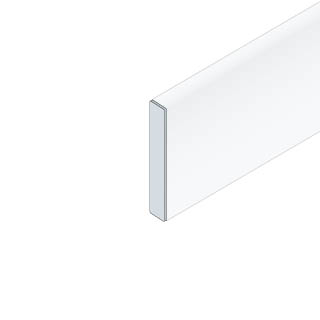

Endsurface EAS-G90-13-DK-ELO
perfect fit lasered endsurface EAS-G90-13-DK-ELO made of anodized aluminum for profile endings. the endsurface (coverplate) has to be glued on at the profile ending, which creates a clean finish. informations to install the endsurface can be found in the assembly instructions.
SKU:
EAS-G90-13-DK-ELO
tender specifications :: baseboards :: G series :: with stainless-steel surface
sockelleisten-SERIE-G-ELO-AP-EN.DOC
assembly note :: baseboards :: G series :: (german language)
aluplan-montage-serie-G-DE.pdf
